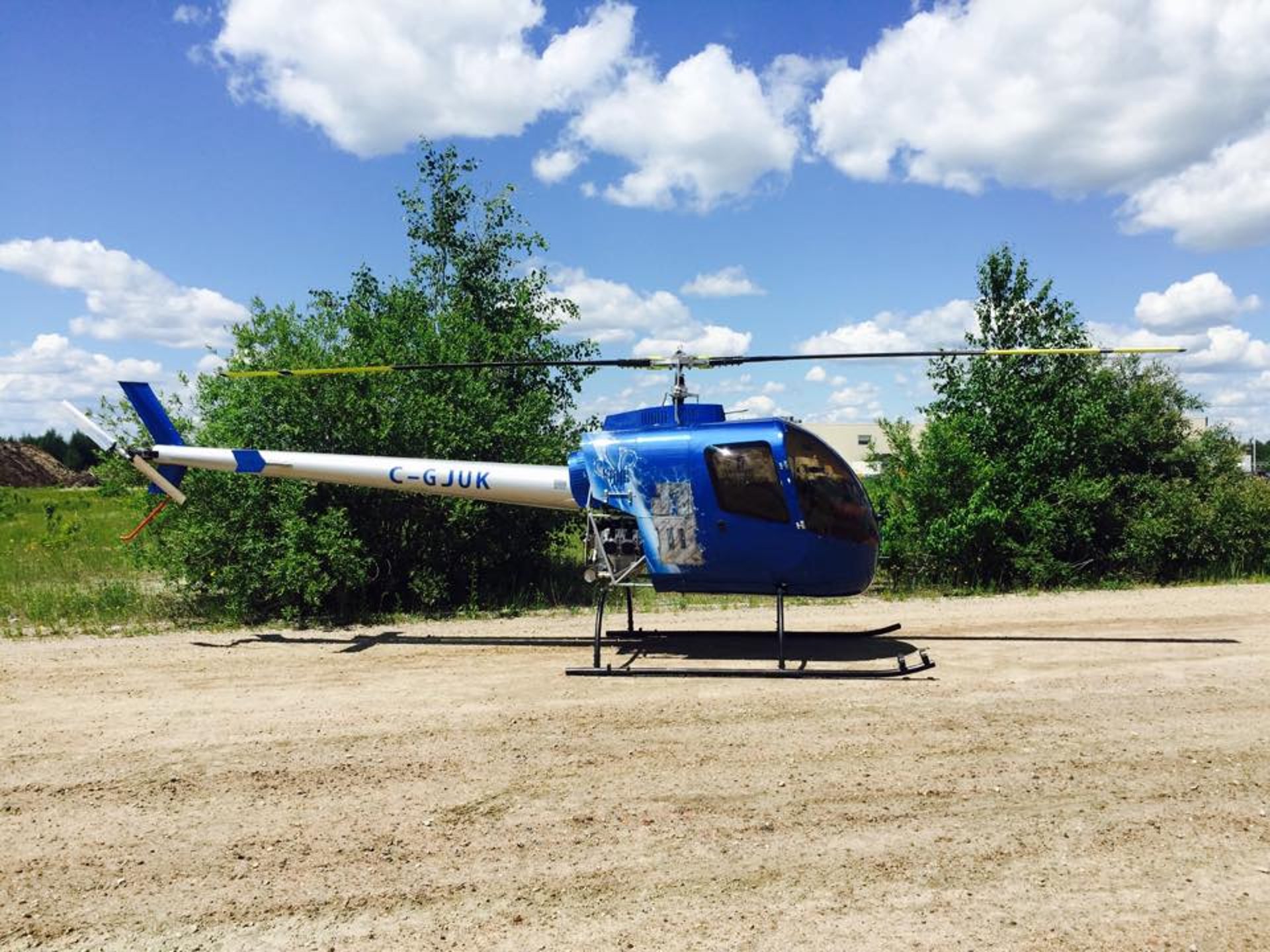

The Dragonfly JB3 Helicopter:

The Dragonfly JBIII helicopter is a remarkable piece of aviation engineering that combines efficient design with robust performance. With a maximum gross weight of 1,540 lbs (699 kg) and a useful load capacity of 584 lbs (265 kg), this model offers an excellent balance between weight and payload, making it versatile for various applications. Its lightweight yet durable frame, paired with the powerful Garrett PBS turbine engine delivering up to 240 shp, enables this helicopter to achieve a commendable cruising speed of 80 knots (148 km/h) while maintaining fuel efficiency. The Dragonfly also has a maximum speed (VNE) of 110 knots, providing a significant range of operational flexibility.

For those seeking an alternative to the turbine, the Dragonfly can also be equipped with a UL Power 520i piston engine, running on 98-octane MOgaz fuel. In this configuration, the empty weight is 1,275 lbs, offering a lighter setup that maintains high performance and fuel economy.

Specifications

• Weight:

  • Empty Weight: 956 lb (434 kg)

  • Maximum Gross Weight: 1540 lb (699 kg)

  • Useful Load: 584 lb (265 kg)

• Passenger Weight Limits:

  • Minimum Pilot Weight (solo): 150 lb (68 kg)

  • Maximum Pilot Weight: 250 lb (113 kg)

  • Maximum Passenger Weight: 210 lb (95 kg)

• Speed:

  • Cruise Speed: 80 knots (92 mph) [148 km/h]

  • Maximum Permitted Speed: 120 mph [138 km/h] [222 km/h]

• Fuel Consumption and Range:

  • Maximum Endurance: 2.5 hours (unspecified fuel model)

  • Maximum Range: 145 nautical miles (168 miles) [270 km]

  • Fuel Consumption: 52 liters per hour (14 US gallons per hour)

• Fuel Capacity:

  • Fuel Tank Capacity: 151 liters (40 US gallons)

• Engine Specifications (Turbine):

  • Model: Garrett PBS

  • Horsepower: 225 to 240 shp

Features

One of the standout features of the Dragonfly JB3 is its impressive fuel consumption rate—52 liters per hour (14 US gallons)—which allows for a maximum range of 145 nautical miles (270 km). This balance of speed and endurance makes it well-suited for both recreational and operational flights, especially where fuel efficiency is critical. The helicopter’s build and specifications indicate attention to not only performance but also pilot comfort, with weight accommodations designed for a range of passengers.

Technical and Mechanical Details

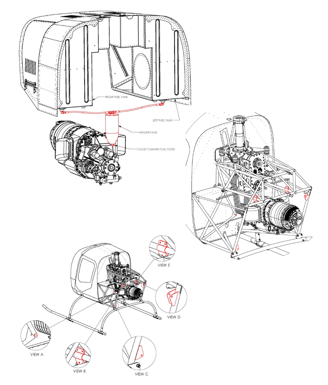

• Attachment Points for Turbine Engine

  • Views (A-E) describe the positioning and attachment methods:

    • Mounting Frame: Fixed to the engine mount and attachment point on the turbine.

    • Rod End and Turnbuckle: Multiple attachment points where rod ends and turnbuckles connect to brackets on the turbine.

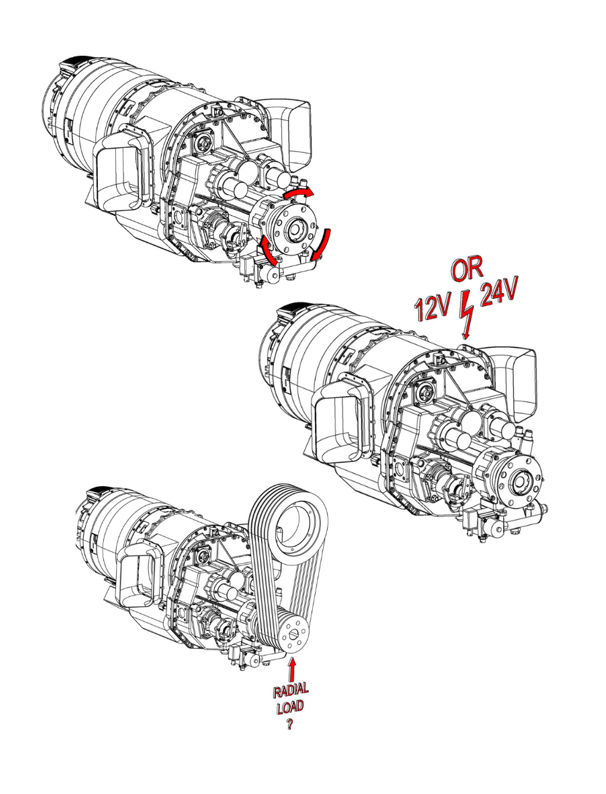

• Output Shaft Rotation

  • Clockwise Rotation: The output shaft must rotate clockwise.

• Voltage

  • Input Voltage: Not specified; further clarification may be needed.

• Axial Load on Output Shaft

  • There is a question regarding whether a radial load can be applied on the output shaft when belts are tightened. This likely pertains to operational limits under certain loading conditions.

• Fuel Alimentation and Exhaust

  • Exhaust Modifications: Questions about potential adjustments, such as rotating or extending the exhaust pipes if necessary.

Additional Information

Overall, the Dragonfly JBIII embodies both practicality and innovation in the realm of light aviation. Its blend of powerful turbine technology, efficient fuel usage, and thoughtful design is a testament to Hélicoptère Multi-Tech’s commitment to quality and performance. The Dragonfly JBIII promises an exceptional flight experience, aligning safety, endurance, and ease of use in a truly outstanding helicopter model.

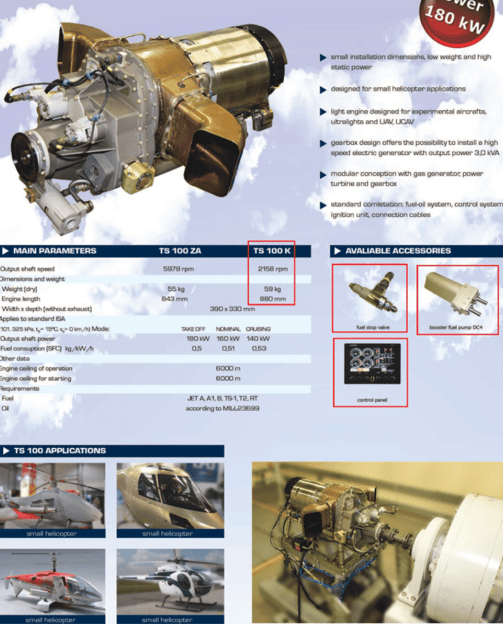

Options for the TS 100 K Turbine Model

• Testing Status:

  • Tested performance on a helicopter, including fuel consumption specifications.

• Air Filtration Requirement:

  • Required air filter type or model compatible with the TS 100 K turbine.

• Control Mechanism:

  • Availability of mechanical control option without the need for a control panel.

• Oil Cooling System:

  • Inclusion of an oil cooler with the TS 100 K turbine, or the need for an external addition.

• Maintenance Training:

  • Provision of maintenance training for supporting clients effectively.

• Documentation and Manuals:

  • Availability of service, parts, and operational manuals for the TS 100 K turbine.

• Delivery and Production Capacity:

  • Typical delivery timeframe.

  • Production capacity to meet demand.

Piston Engine Option

The Dragonfly helicopter offers cutting-edge design and features that ensure both performance and versatility. Engineered for efficiency and adaptability, this model now comes with an alternative power option:

• Piston Engine Option: Unlike traditional turbine engines, the Dragonfly can be equipped with the UL Power 520i piston engine, running on MOgaz 98-octane fuel. This alternative provides a reliable and efficient power source, ideal for those seeking a more cost-effective fuel option.

With its innovative design and flexible power options, the Dragonfly adapts to your needs, making it an outstanding choice for both new projects and seasoned operators.

Ready to elevate your journey?

The Dragonfly JBIII isn’t just a helicopter—it’s a powerful, efficient, and dependable partner for every flight. Designed to excel in both performance and comfort, it offers impressive range, fuel efficiency, and versatility to meet your needs, whether for business or personal use. With its cutting-edge turbine engine and durable build, the Dragonfly JBIII ensures an unmatched flying experience.

Contact us today to make the Dragonfly JB3 your own, and soar with confidence.
